Setup Sheet

This feature is useful in shop floor enviroment, for machine operator.

Is possible create a setup sheet , containing all the necessary informations used in machine etup stage .

It's a sort of summary of the project with a list of all the operation, used tools, machine time and so on.

To generate Setup Sheet, all the project operations need a valid toolpath.

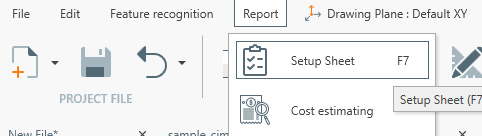

From MENU -> SETUP SHEET , or press F7 from keyboard.

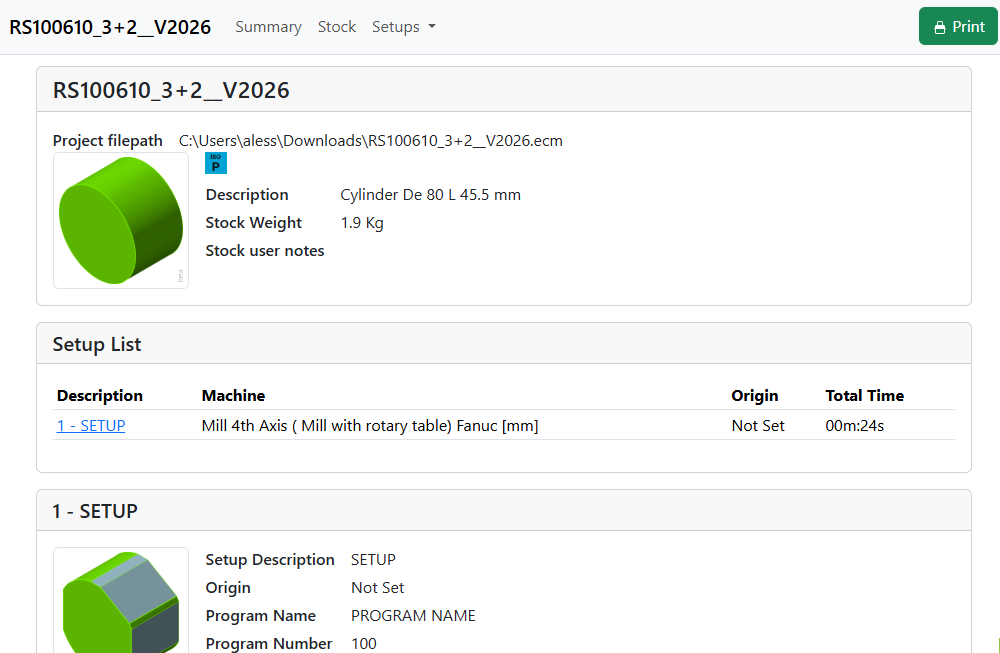

An HTML page will be generated.

In this way it will be visible from every pc connected to local LAN network.
