Lathe cut-off operation

When is necessary cut away turned part from bar, you need the Cut operation .

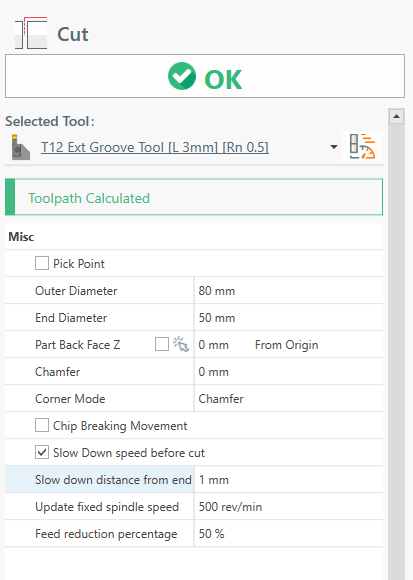

From main menu -> Lathe -> Cut

Pick Point : Let you select outer diameter and Length with mouse cursor.

Outer Diameter : It's the start diameter of cut cycle

End Diameter : It's the end diameter of cut cycle. This diameter is compensated with tool nose radius in gcode.

Length: It's the desired length of part.

Chamfer : You can create a chamfer or fillet in cut corner.

Chip Breaking Movement : When enabled, it create a chip breaking movement instead of a plain work movement to cut the part. This help to create smaller chip.
